Energy monitor with USB-C

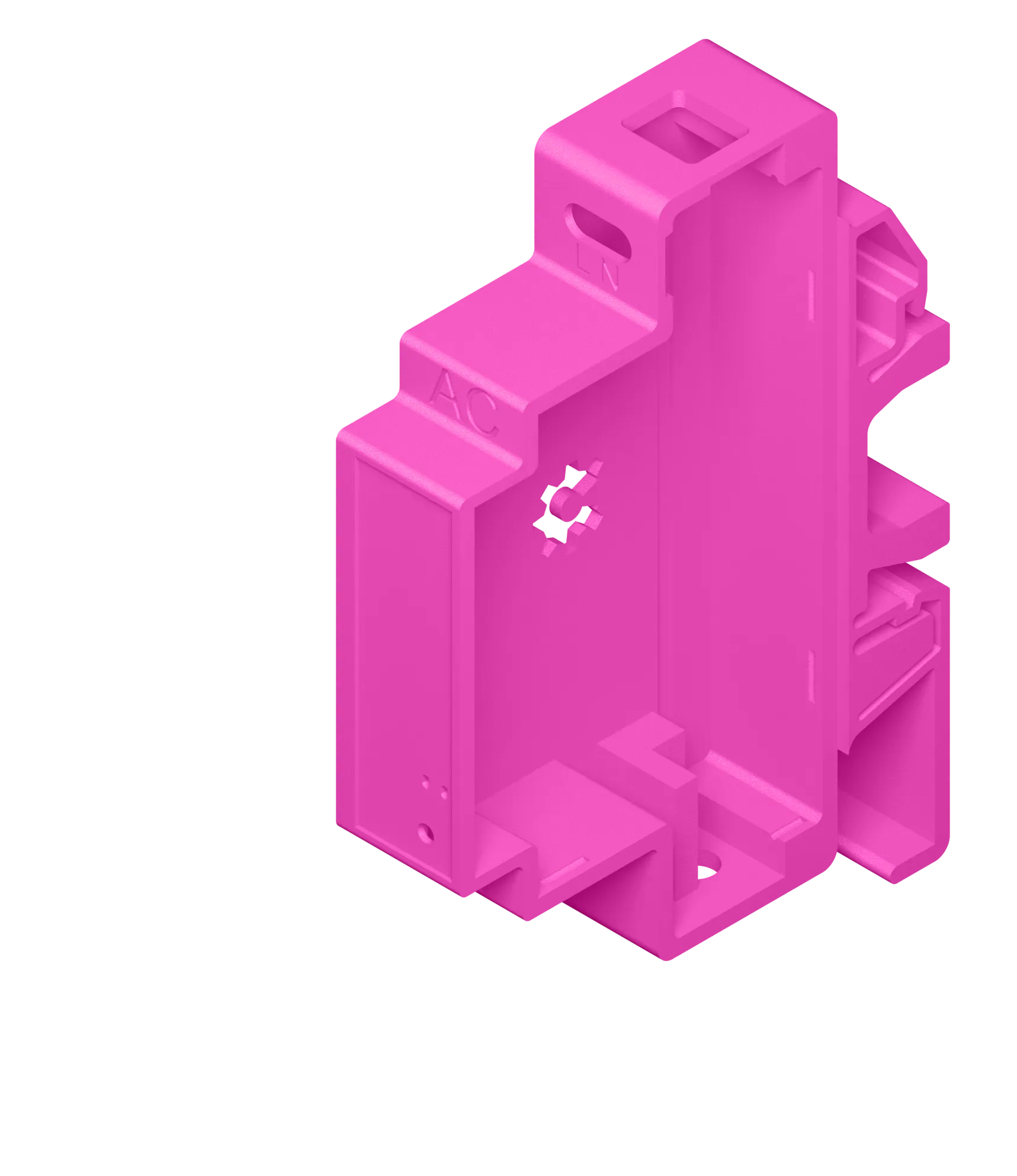

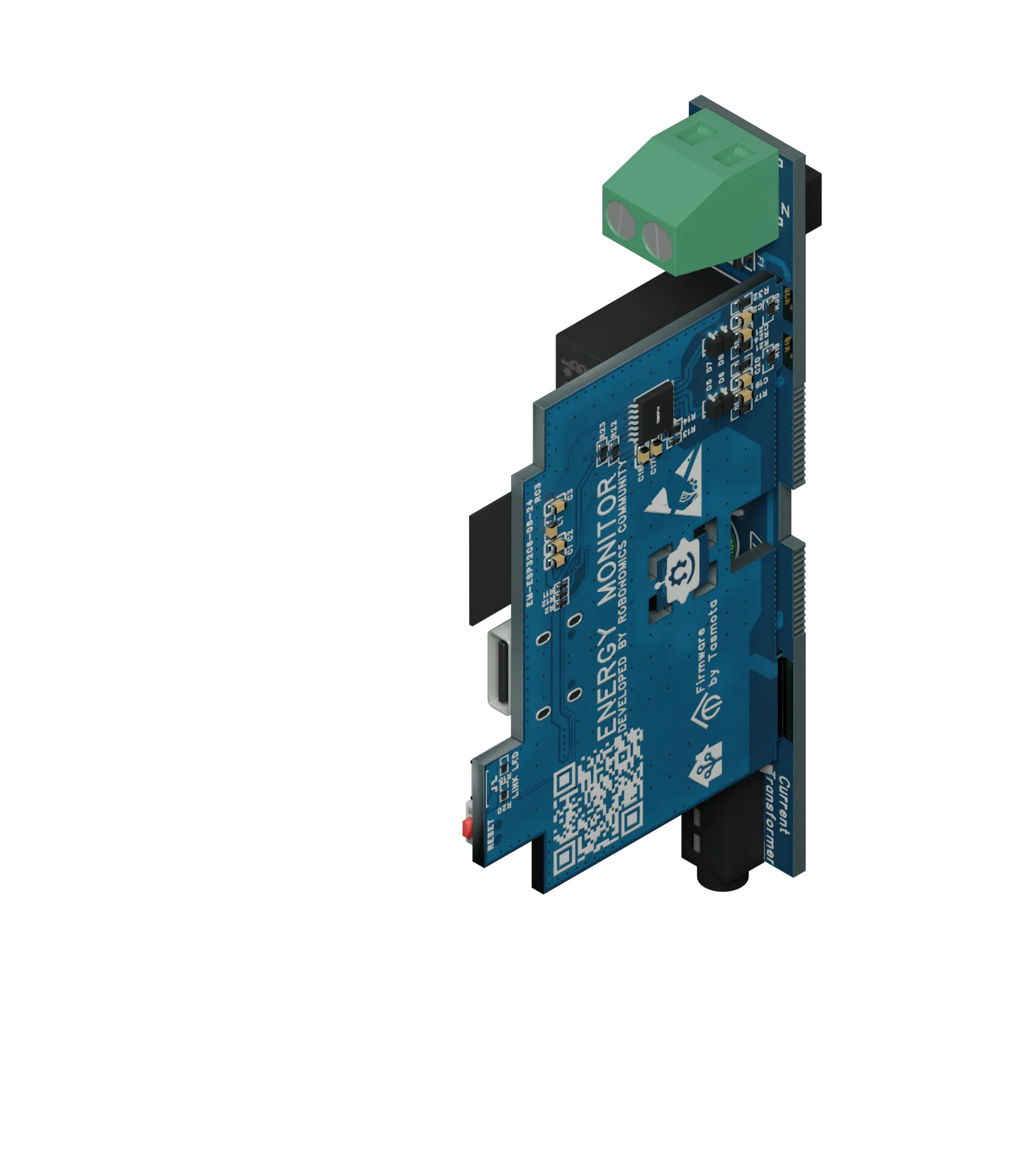

A non-invasive device for installation in electrical panels with DIN rail mounting. Built on the Espressif ESP32C6 chip with open RISC-V architecture.

Equipped with USB-C supports WiFi and Zigbee. Records electricity consumption and generation data in the Polkadot network at 10-minute intervals.

• Input Voltage: AC 100-240V 50/60Hz
• Measuring Range: 0.1-80A
• Wireless Protocol: IEEE 802.11b/g/n (2.4 GHz Wi-Fi)
• CPU: ESP32-S3 MCU-based system on a chip (SoC) dual-core microprocessor (Xtensa 32-bit LX7), up to 240 MHz
• Memory: 448 KB ROM, 520 KB SRAM, 8 MB FLASH
• USB-C for development and updates

• To configure the device, please visit: https://tasmota.github.io/docs/MQTT/
